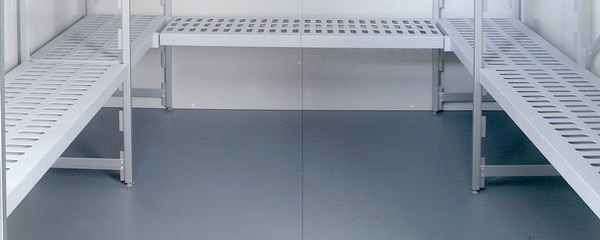

Anti-slip, reinforced plastic coated surface on waterproof hexagonal birch plywood.
max. permissible load per rubber wheel:
200 kg
Load bearing surface:
4 cm²
max. permissible surface load:
30.000 N
Anti-slip property:
R11

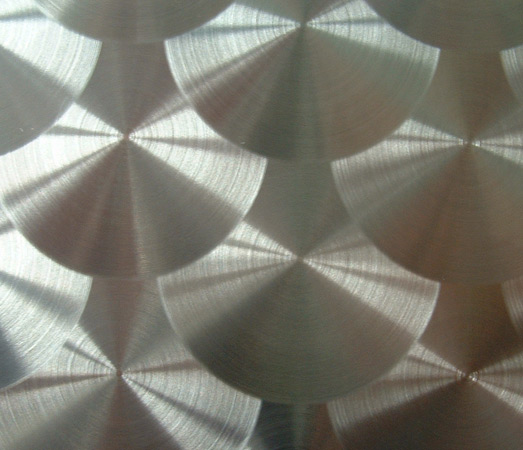

Stainless steel (1.4301) pattern rolled or ground
Material thickness 0.8 / 1.5 mm, waterproof birch plywood directly foamed and covered by stainless steel.
max. permissible load per rubber wheel:
200 / 300 kg
Load bearing surface:
4 cm²
max. permissible surface load:
20.000 / 30.000 N
Anti-slip property:
R11 / R12 (no extra charge)

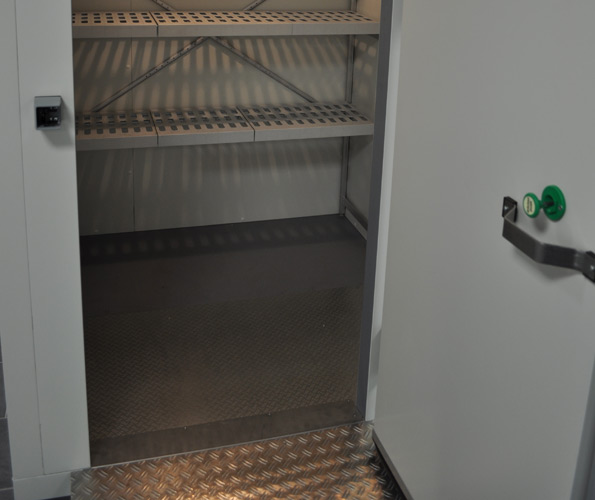

Stainless steel (1.4301) floor pan or plate hot rolled - Material thickness 3.0 mm
Floor Pan entirely glued to waterproof birch plywood. After cold room assembly, a pan consisting of hot rolled stainless steel which exhibits edges drawn up to a height of 30 mm and welded in the corners is entirely glued to the multiplex plate. Z-profile borders the floor / wall. Reinforced in the area of the seam and firmly attached in a waterproof manner by means of counter-sunk cup blind rivets. Floor Plate same as Pan without drawn up edges and Z-profile.
